P0903BEA

Type Designator: P0903BEA

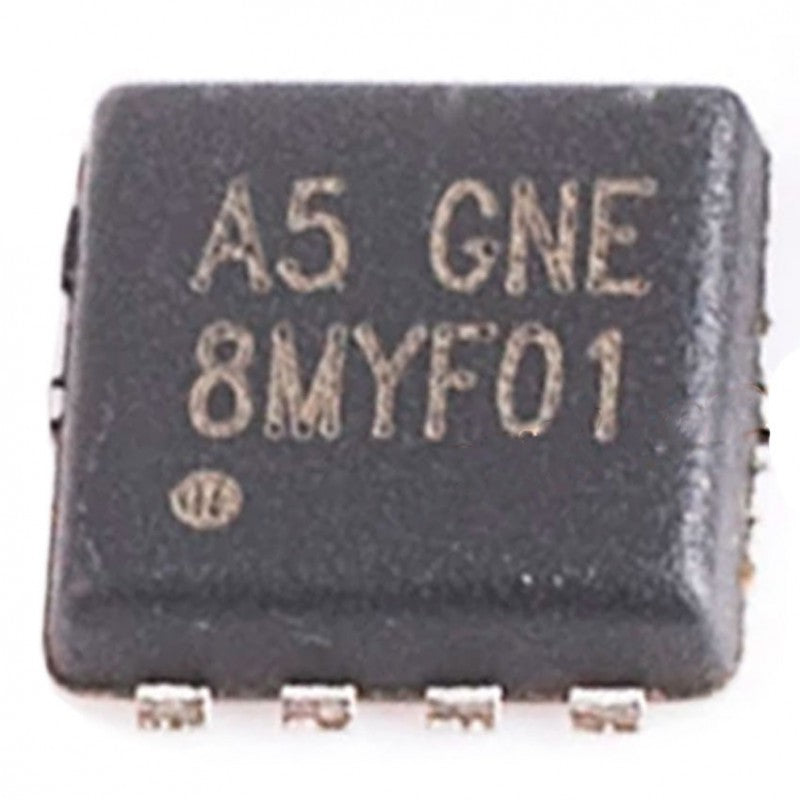

   Marking Code: A5ANB_A5GNB_A5GNC_A5GND_A5VNB_A5VNE
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pdⓘ - Maximum Power Dissipation: 33 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 30 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 3 V
   |Id|ⓘ - Maximum Drain Current: 48 A
   Tjⓘ - Maximum Junction Temperature: 150 °C
   Qgⓘ - Total Gate Charge: 31 nC
   trⓘ - Rise Time: 14 nS
   Cossⓘ - Output Capacitance: 193 pF
   Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.009 Ohm
