Type Designator: AO4407
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pdⓘ - Maximum Power Dissipation: 3.1 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 30 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 25 V
   |Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 2.8 V
   |Id|ⓘ - Maximum Drain Current: 12 A
   Tjⓘ - Maximum Junction Temperature: 150 °C
   Qgⓘ - Total Gate Charge: 30 nC
   trⓘ - Rise Time: 9.4 nS
   Cossⓘ - Output Capacitance: 370 pF
   Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.014 Ohm

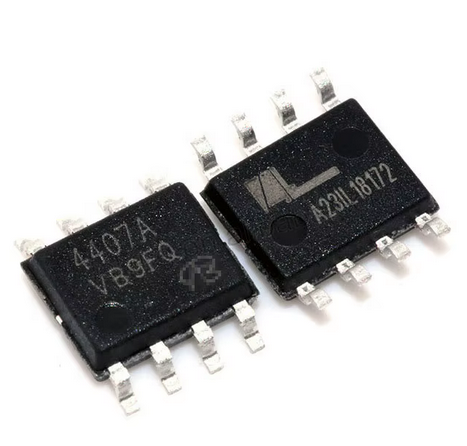

   Package: SO-8
