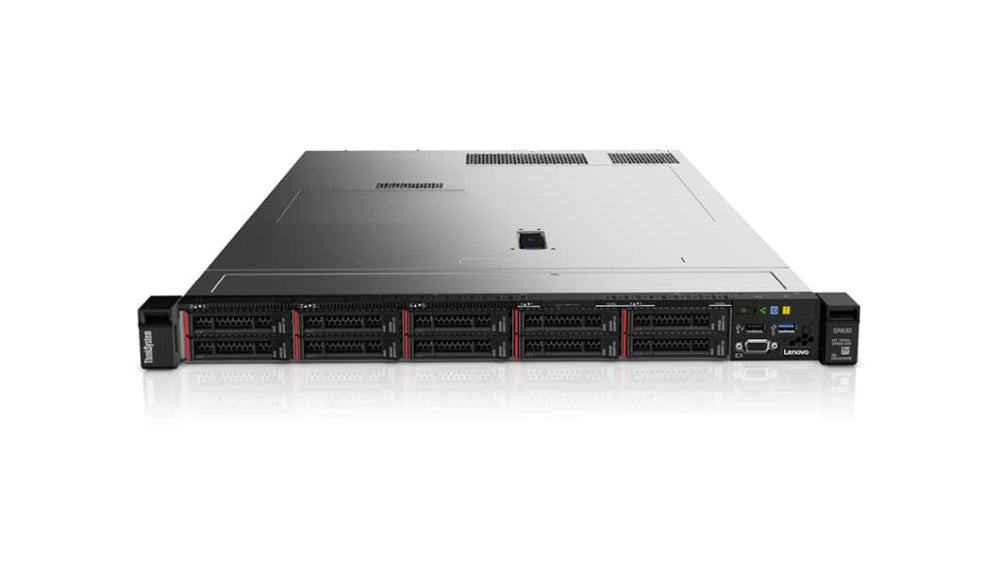

Сървър, Lenovo ThinkSystem SR630, Xeon Silver 4214 (12C, 2.2GHz, 16.5 MB cache, 85W)
Серия | Think System SR630 |
---|---|
Процесор | Intel Xeon Silver 4214 2.20 GHz, 12-core, 16.5 MB cache, 85W |
Памет, GB | 1x 16GB (x8) 2666MHz |
Памет, слотове | Up to 24 DIMM sockets (12 DIMMs per processor; six memory channels per processor with two DIMMs per channel). Support for RDIMMs or 3DS RDIMMs; types cannot be intermixed. Memory speed up to 2666 MHz. |
Твърд диск, GB | No HDD |
Дисков контролер | 1x RAID 930-8i 2GB |
Брой поддържани дискове | 8/10 SFF (std / max); Up to 10 SFF SAS/SATA hot-swap drive bays: 8x 2.5" (front) + 2x 2.5" (rear) |
Оптично устройство | - |
Мрежа | 1x RJ-45 10/100/1000 Mb Ethernet systems management port; Onboard LOM slot for up to 4x 1/10 Gb Ethernet ports |
Разширителен слот | 1x PCIe x8 |
Интерфейс | Front: 1x USB 2.0 with XClarity Controller access and 1x USB 3.0; optional 1x VGA port. Rear: 2x USB 3.0 and 1x VGA. Optional 1x DB-9 serial port. |
Порт за отдалечено управление | - |
Захранване | 1x 750W Platinum |
Съвместими операционни системи | Microsoft Windows Server 2016 and 2019; Red Hat Enterprise Linux (RHEL) 7 and 8; SUSE Linux Enterprise Server (SLES) 12 and 15; VMware vSphere (ESXi) 6.5, 6.7, and 7.0. |
Софтуер за управление | XClarity Controller (XCC) Enterprise, proactive platform alerts, light path diagnostics, XClarity Provisioning Manager, XClarity Essentials/Administrator/Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planne |
Форм-фактор | 1U Rack |
Тип на шасито | Hot-Plug |
Други | Tooless Rails |
Гаранция | 36 месеца |
