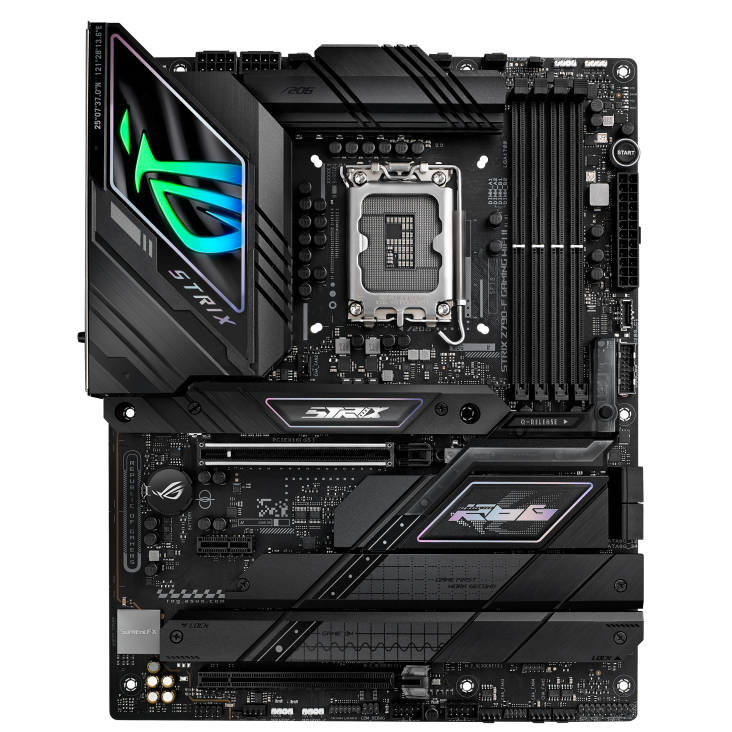

Дънна платка ASUS ROGSTRIX Z790-F GAM WF II - 69669

Audio: ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080*; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front and Rear Panel MIC Jack-retasking; - High quality 120 dB SNR stereo play

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset: Intel® Z790 Chipset

Connectors: 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector; 5 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 20Gbps connector (

CPU's supported: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Expansion Slots: Intel® CoreTM Processors (14th & 13th & 12th Gen)*; 1 x PCIe 5.0x16 slot (supports x16 mode); Intel® Z790 Chipset** ; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1x PCIe 3.0 x1 slot

Form Factor: ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Graphics: 1 x DisplayPort**; 1 x HDMITM port***

I/O: 1 x USB 20Gbps port (1 x USB Type-C®); 3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®) ; 4 x USB 5Gbps ports (4 x Type-A); 6 x USB 2.0 ports (6 x Type-A) ; 1 x DisplayPort; 1 x HDMITM port; 1 x Wi-Fi Module; 1 x Intel® 2.5Gb Ethernet; 2 x Gold-plat

LAN: 1 x Intel® 2.5Gb Ethernet; ASUS LANGuard

Memory type: 4 x DIMM slots, Max. 192GB, DDR5; 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*"; Dual Channel Memory Architecture;

OS: Windows® 11, Windows® 10 64-bit

Other: Intel® Wi-Fi 7*; 2x2 Wi-Fi 7 (802.11be)**; Supports 2.4/5/6GHz frequency band***; Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.; Bluetooth® v5.4****

Storage: Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® CoreTM Processors (14th & 13th & 12th Gen) ; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); Intel® Z790 Chipset; M.2_2 slot (Key M), type 2280 (supports PCIe

Warranty: 36 Months

Марка: ASUS

Чипсет: Intel Z790
