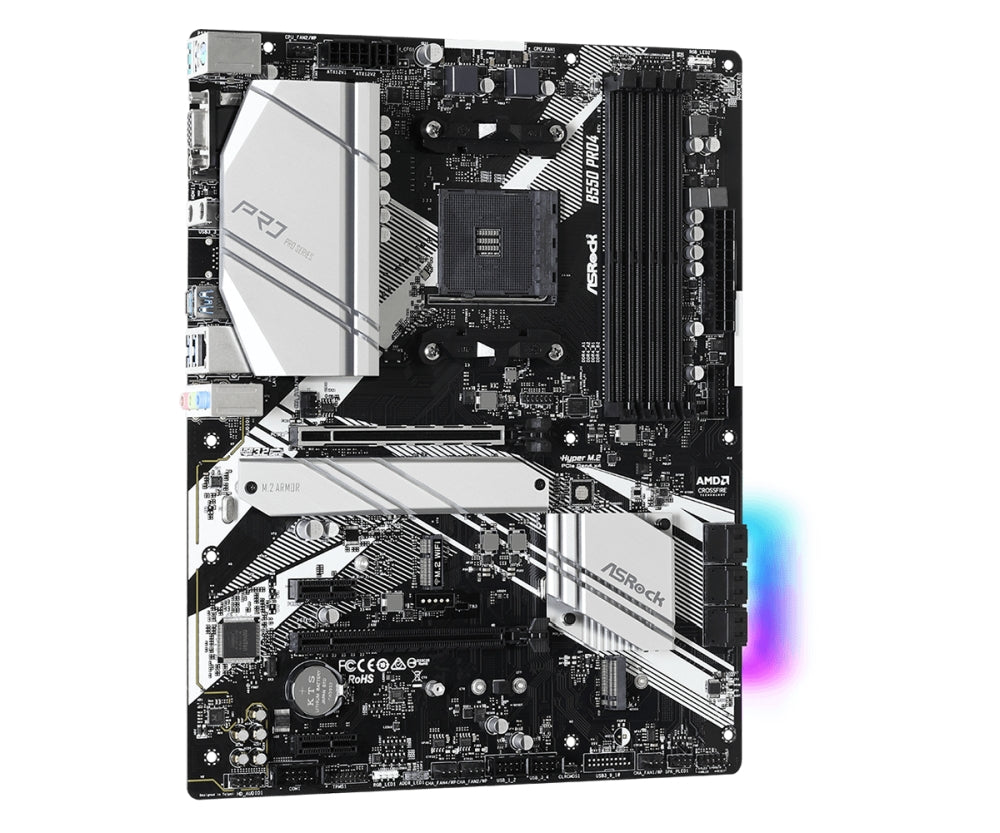

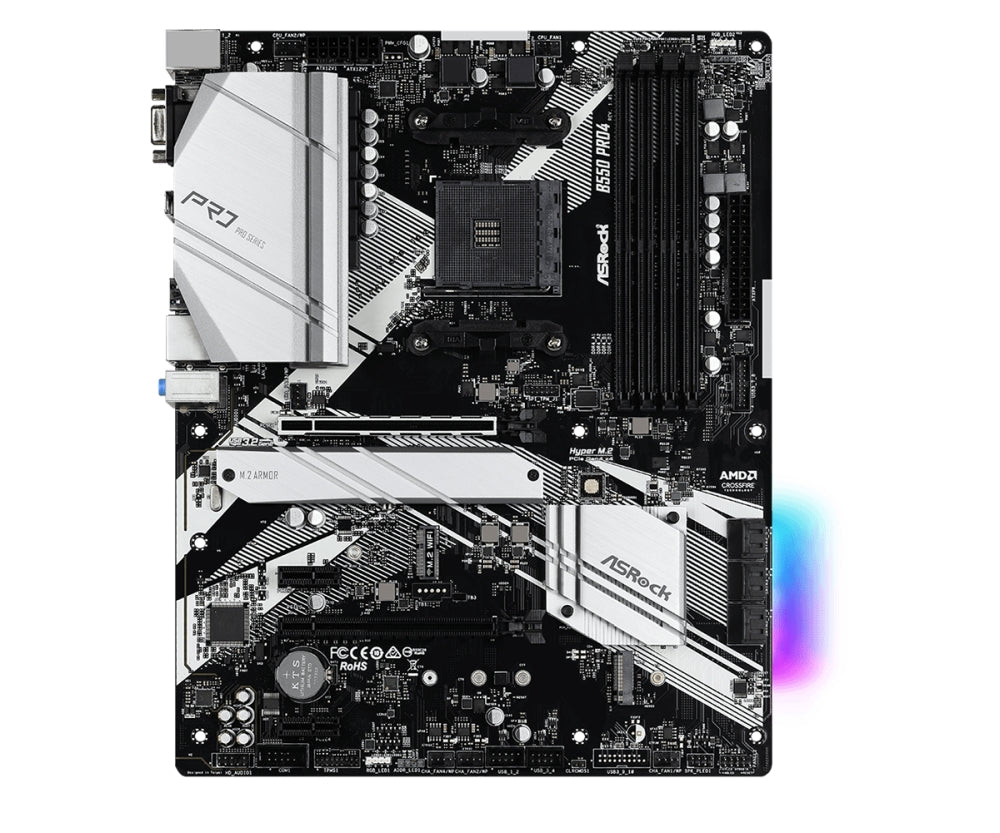

Дънна платка, Asrock B550 PRO4

Статус :В наличност
283.00 лв
Secure
Серия PRO4
Процесор AMD AM4 Ryzen
Чипсет AMD B550
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustmen
Памет, слотове 4 x DDR4 DIMM Slots, Max. capacity of system memory: max. 128GB, Supports Extreme Memory Profile (XMP) memory modules
Аудио 7.1 CH HD Audio with Content Protection, Premium Blu-ray Audio support, Supports Surge Protection, PCB Isolate Shielding, Individual PCB Layers for R/L Audio Channel, Nahimic Audio.
Мрежа PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Безжична мрежа -
Конектори 1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header.
Слотове AMD Ryzen series CPUs (Matisse)- - 2 x PCI Express x16 Slots, AMD Ryzen series APUs- 2 x PCI Express x16 Slots; 2 x PCI Express 3.0 x1 Slots,Supports AMD Quad CrossFireX and CrossFireX, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module.
M.2 слот 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module, 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module.
Интерфейс Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port,1 x HDMI Port, 1 x DisplayPort 1.2, 2 x USB 2.0 Ports, 1 x USB 3.1 Gen2 Type-A Port, 1 x USB 3.1 Gen2 Type-C Port, 4 x USB 3.1 Gen1 Ports, 1 x RJ-45 LAN Port with LED.
Софтуер ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC, ASRock XFast LAN.
Операционна система Microsoft Windows 10 64-bit
Форм-фактор ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
Специални функции ASRock USB 3.2 Gen2, ASRock Super Alloy, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock POST Status Checker, ASRock Full Spike Protection, ASRock Live Update & APP Shop.
Гаранция 36 месеца
